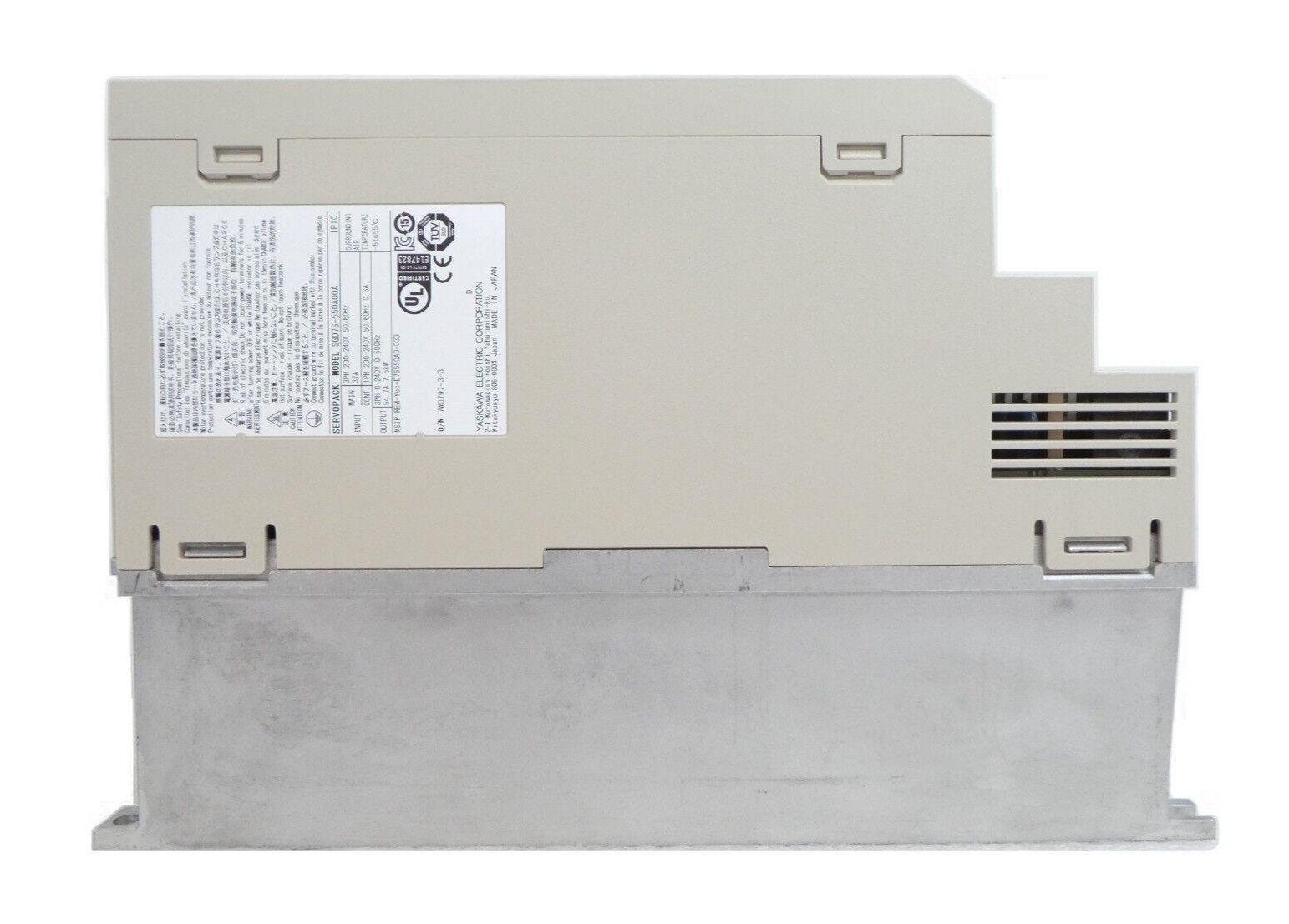

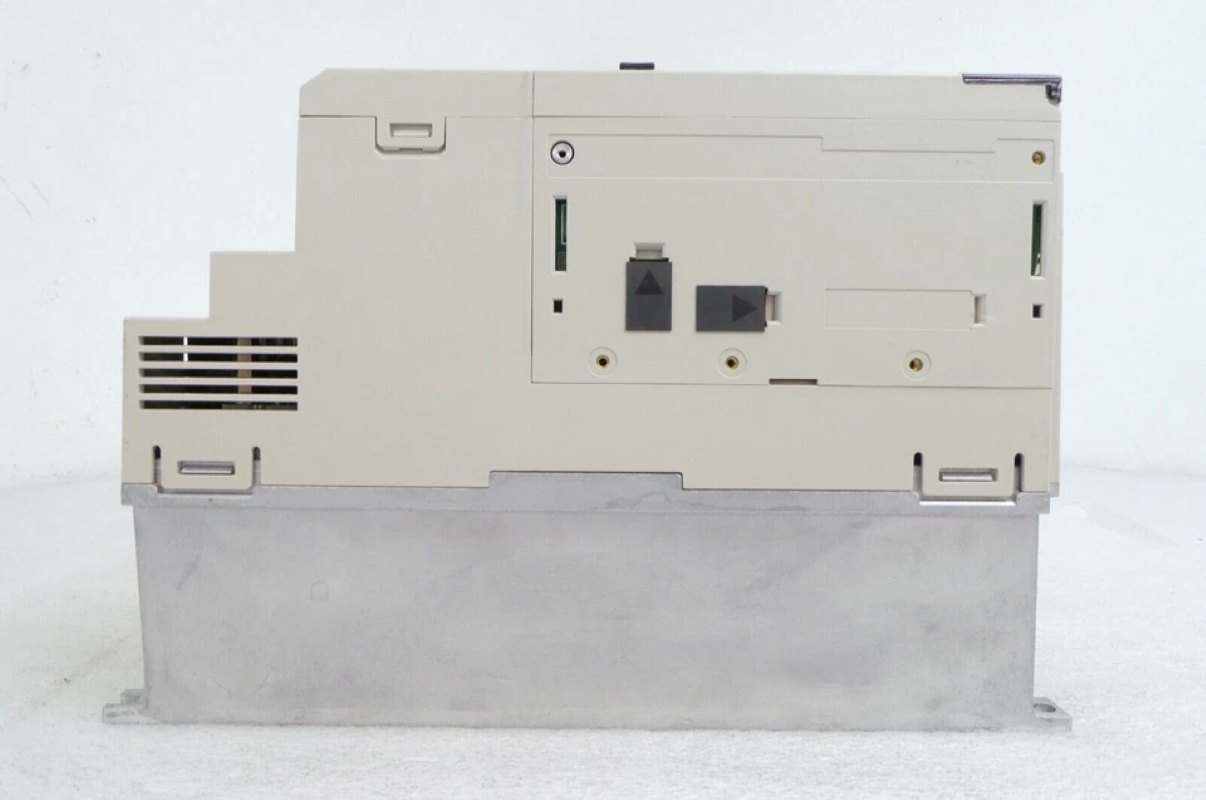

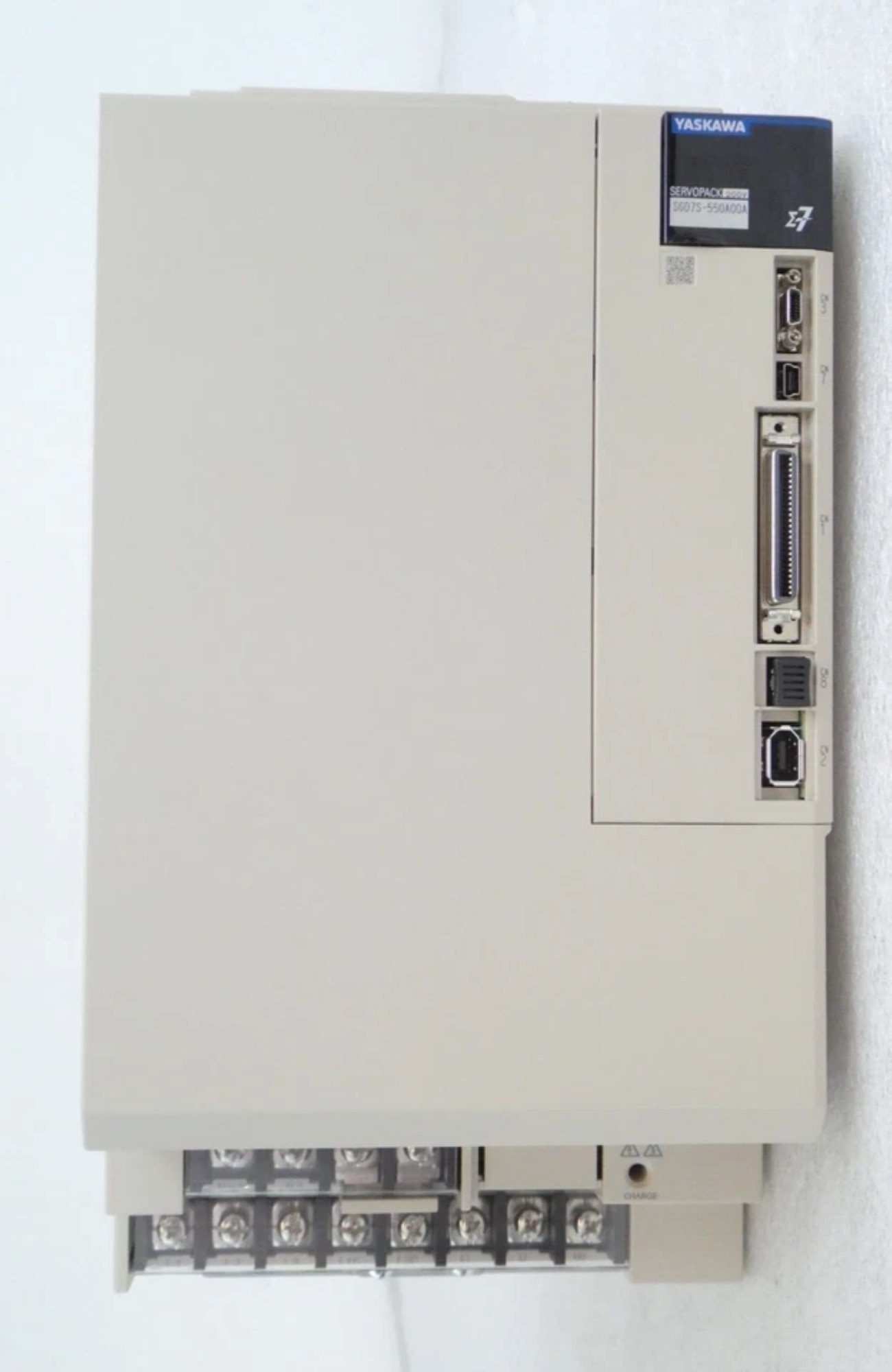

Yaskawa SGD7S-550A00A Servo Drive 7.5kW

The Yaskawa SGD7S-550A00A is a high-performance Sigma-7 AC Servo SERVOPACK designed for high-speed, high-precision motion control in industrial automation and machine-building applications.

This single-axis servo amplifier supports a maximum applicable motor capacity of 7.5 kW and operates with a 200 V, 3-phase power supply. The SGD7S-550A00A uses an Analog Voltage / Pulse Train reference interface and supports both rotary and linear motor applications.

The Sigma-7 platform is designed to provide fast response, accurate positioning, vibration suppression and advanced safety functions for demanding industrial motion-control applications.

Key Features

• Brand: Yaskawa
• Series: Sigma-7
• Model: SGD7S-550A00A
• Product Type: AC Servo SERVOPACK
• Maximum Applicable Motor Capacity: 7.5 kW
• Input Voltage Class: 200 V
• Input Phase: 3-Phase
• Number of Axes: 1
• Interface: Analog Voltage / Pulse Train
• Continuous Output Current: 54.7 Arms
• Instantaneous Maximum Output Current: 130 Arms
• Speed Frequency Response: Up to 3.1 kHz
• Motor Application: Rotary / Linear
• Design Revision: A
• Safety: SIL 3 STO / PL-e CAT 3
• Advanced Safety Functions: SS1, SS2, SLS

Yaskawa’s official product information specifies the SGD7S-550A00A for a maximum applicable motor capacity of 7.5 kW, with Analog Voltage/Pulse Train control.

Technical Specifications

The Sigma-7 technical documentation lists 54.7 Arms continuous output current, 130 Arms instantaneous maximum output current, and 14.6 kVA power supply capacity for the SGD7S-550A model.

High-Speed Motion Control

The SGD7S-550A00A Sigma-7 SERVOPACK is designed for machines requiring high-speed and precise servo control. Its speed-frequency response can reach 3.1 kHz, helping the servo system respond quickly to changes in command and load conditions.

Advanced Sigma-7 technologies include:

• High-speed servo response
• Advanced auto tuning
• Vibration suppression
• Ripple compensation
• High-precision positioning
• Feedback options
• Advanced safety functions

These features make the SGD7S-550A00A suitable for demanding industrial motion-control systems.

Advanced Safety Functions

The SGD7S-550A00A includes advanced safety capabilities designed for modern machine safety architectures.

Yaskawa specifies:

• STO – Safe Torque Off
• SIL 3
• PL-e CAT 3
• SS1 – Safe Stop 1
• SS2 – Safe Stop 2
• SLS – Safely Limited Speed

The exact safety implementation depends on the overall machine design and control system.

Applications

The Yaskawa SGD7S-550A00A can be used in a wide range of industrial automation applications, including:

• CNC machines
• Packaging machines
• Textile machinery
• Printing machines
• Cutting machines
• Industrial robots
• Material handling systems
• Pick-and-place machines
• Conveyor systems
• Woodworking machinery
• High-speed positioning equipment
• Rotary motion systems
• Linear motion systems
• Machine retrofit projects
• Industrial automation equipment

Why Choose Yaskawa SGD7S-550A00A?

7.5 kW Servo Capacity

The SGD7S-550A00A supports a maximum applicable motor capacity of 7.5 kW, making it suitable for higher-power servo applications within the 200 V Sigma-7 range.

High Output Current

With 54.7 Arms continuous output current and 130 Arms instantaneous maximum output current, the SERVOPACK is designed for demanding motor-control requirements.

Fast Response

The Sigma-7 series provides up to 3.1 kHz speed-frequency response for fast and precise motion control.

Precise Positioning

The Sigma-7 servo platform is engineered for accurate positioning and smooth motor operation in automated machinery.

Vibration Suppression

Built-in motion-control technologies help suppress unwanted vibration and improve machine stability.

Compatible Yaskawa Servo Motor

The SGD7S-550A00A is intended for Yaskawa Sigma-7 servo motor applications up to 7.5 kW.

When selecting a compatible motor, the following parameters should be checked:

• Motor rated capacity
• Rated torque
• Maximum speed
• Encoder specification
• Load inertia
• Application duty
• Required positioning accuracy
• Servo cable and feedback compatibility

For a replacement or machine retrofit, it is recommended to verify the complete SERVOPACK + Servo Motor + Encoder + Servo Cable + Controller combination before installation.

Yaskawa SGD7S-550A00A Price in Bangladesh

Looking for the Yaskawa SGD7S-550A00A Servo Drive price in Bangladesh?

ZONCN BANGLADESH supplies and supports Yaskawa servo drive and industrial automation products for customers in Bangladesh.

We can assist with:

• Yaskawa Servo Drive quotation
• Sigma-7 SERVOPACK selection
• Compatible servo motor selection
• Servo drive replacement
• Machine retrofit
• Industrial automation solutions
• Spare parts sourcing
• Technical consultation
• After-sales service

Buy Yaskawa SGD7S-550A00A in Bangladesh

If you are looking for an original Yaskawa SGD7S-550A00A Sigma-7 SERVOPACK for your industrial machine, contact ZONCN BANGLADESH for product availability, quotation and technical support.

Product: Yaskawa SGD7S-550A00A
Series: Sigma-7
Capacity: 7.5 kW
Input: 200–240 VAC, 3-Phase
Interface: Analog Voltage / Pulse Train
Axis: Single Axis
Output Current: 54.7 Arms Continuous
Application: Industrial Servo Motion Control

Yaskawa SGD7S-550A00A FAQs

What is Yaskawa SGD7S-550A00A?

The Yaskawa SGD7S-550A00A is a Sigma-7 single-axis AC Servo SERVOPACK designed for rotary and linear motor applications.

What is the motor capacity of SGD7S-550A00A?

The maximum applicable motor capacity is 7.5 kW.

What is the input voltage?

The SGD7S-550A00A is a 200 V class, 3-phase SERVOPACK. The main circuit supply is 200–240 VAC.

What is the continuous output current?

The continuous output current is 54.7 Arms.

What is the maximum instantaneous output current?

The instantaneous maximum output current is 130 Arms.

What control interface does SGD7S-550A00A use?

The SGD7S-550A00A uses an Analog Voltage / Pulse Train reference interface.

What is the speed-frequency response?

The Sigma-7 SGD7S-550A00A provides a speed-frequency response of up to 3.1 kHz.

Where can I buy Yaskawa SGD7S-550A00A in Bangladesh?

You can contact ZONCN BANGLADESH for Yaskawa SGD7S-550A00A availability, quotation and technical support.
