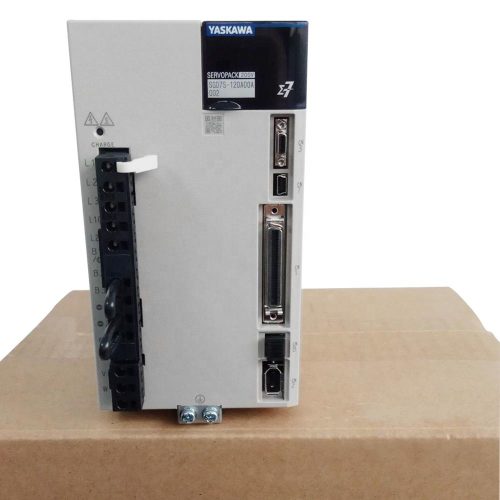

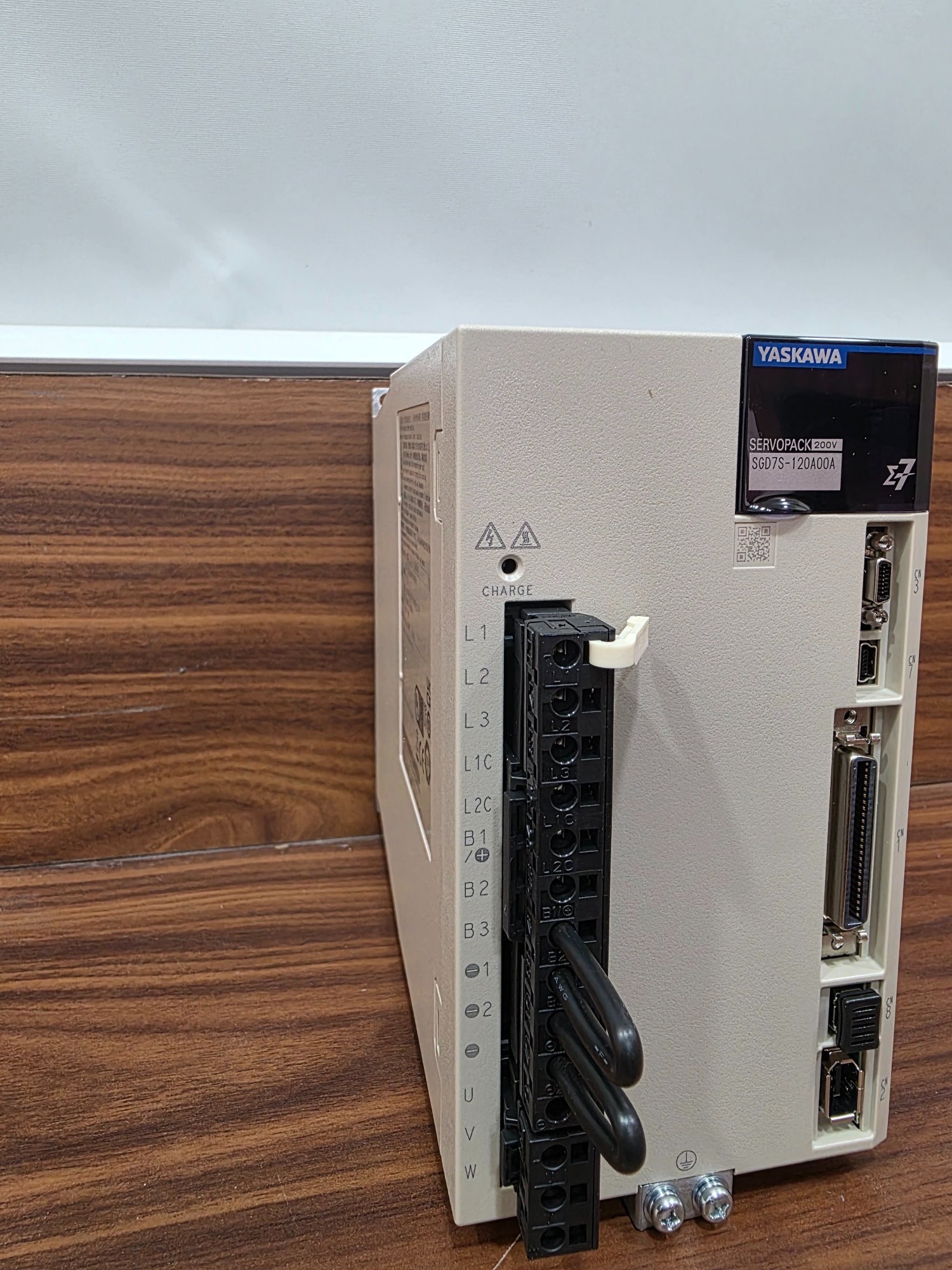

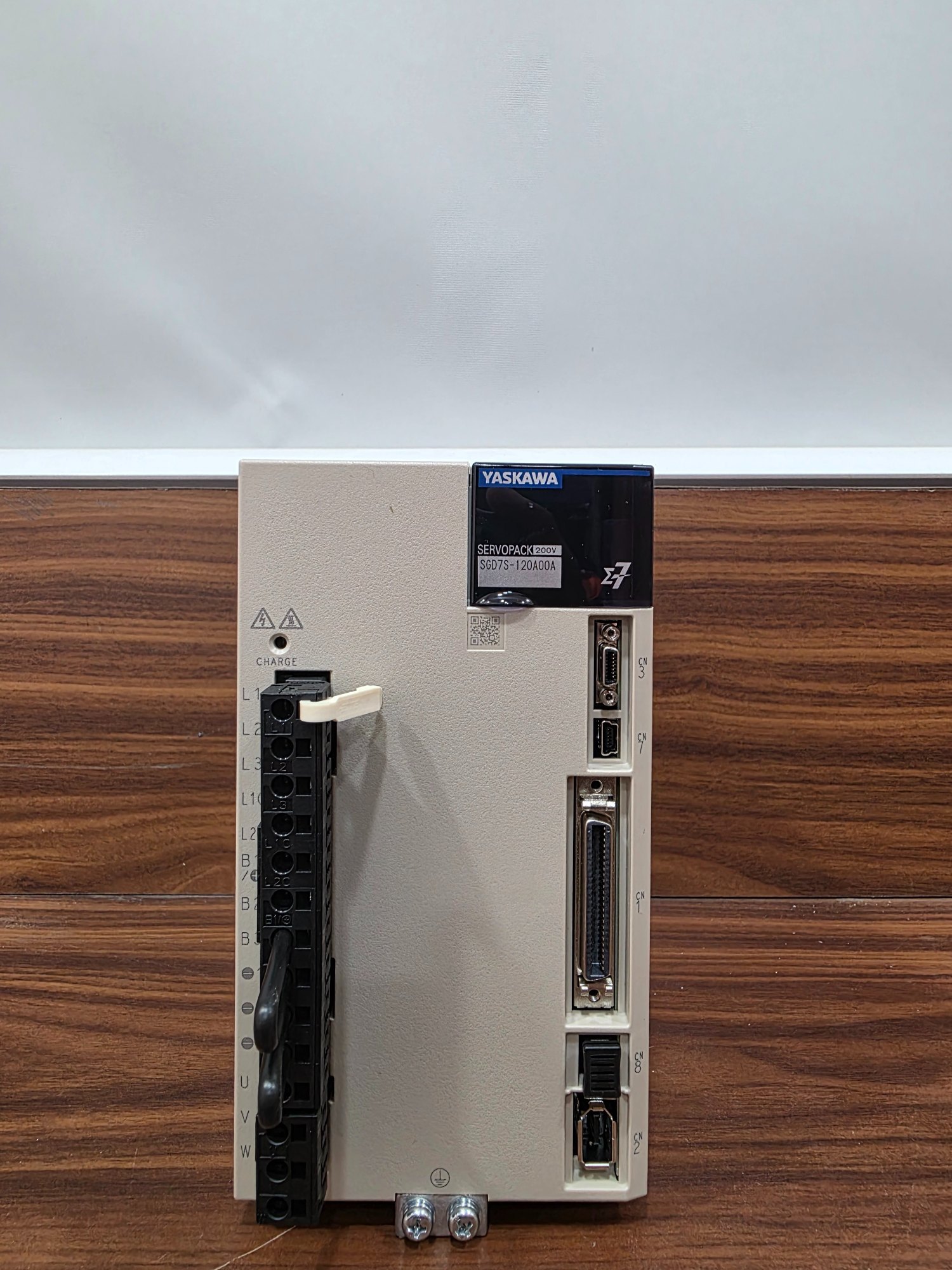

Yaskawa SGD7S-120A00A002 Servo Drive 1.5kW

Yaskawa SGD7S-120A00A002 is a Sigma-7 single-axis AC Servo Drive (SERVOPACK) designed for high-performance industrial motion control applications. It is the 1.5 kW version of Yaskawa’s 200 V Sigma-7 Analog/Pulse Train servo series and features a varnished hardware option for enhanced protection of the drive’s internal components.

The SGD7S-120A00A002 is designed for applications requiring accurate positioning, fast response, stable speed control and reliable servo performance. The SGD7S Analog family provides Analog Voltage/Pulse Train control and a specified 3.1 kHz frequency response.

ZONCN Bangladesh supplies Yaskawa servo drives and industrial automation components for factories, OEM machine builders, laser machine manufacturers, automation projects and industrial maintenance applications in Bangladesh.

Key Features

• Yaskawa Sigma-7 Series
• Single-Axis SERVOPACK
• 1.5 kW / 1500 W maximum applicable motor capacity
• 200 VAC class
• 3-phase power supply
• Analog Voltage / Pulse Train control
• 24-bit encoder compatibility
• 3.1 kHz frequency response
• Varnished hardware option
• High-speed servo response
• High-precision positioning
• Advanced servo tuning functions
• Vibration suppression
• Ripple and friction compensation
• Tuning-less commissioning capability
• Suitable for industrial automation and precision motion-control applications

Yaskawa’s model-number documentation identifies 002 in the hardware-option position as the Varnished option, applicable to all models.

Yaskawa SGD7S-120A00A002 Technical Specifications

Yaskawa’s official SGD7S Analog model table lists SGD7S-120A00A as the 1.5 kW Analog/Pulse model, while the model designation documentation identifies 002 as the varnished hardware option.

What Does “002” Mean in SGD7S-120A00A002?

The final 002 in SGD7S-120A00A002 is not a different power rating or control interface.

The model can be understood as:

SGD7S – 120 – A – 00 – A – 002

• SGD7S = Sigma-7 SERVOPACK
• 120 = 1.5 kW class
• A = 200 VAC
• 00 = standard interface configuration
• A = design revision
• 002 = Varnished hardware option

Yaskawa specifically lists Hardware Option 002 = Varnished, applicable to all models.

This makes SGD7S-120A00A002 particularly relevant when a machine requires the varnished version of the standard SGD7S-120A00A servo amplifier.

High-Speed Sigma-7 Motion Control

The Yaskawa Sigma-7 SGD7S-120A00A002 combines high-speed servo performance with advanced tuning and motion-control functions.

Yaskawa specifies a 3.1 kHz frequency response for the SGD7S Analog family, helping improve servo response and settling time. The platform also includes tuning-less operation, automatic tuning and compensation functions for machine inertia, vibration, ripple and friction.

These features make the drive suitable for machinery where accurate positioning and repeatable motion are essential.

Applications

The Yaskawa SGD7S-120A00A002 1.5kW Servo Drive can be used in a wide range of industrial applications:

• CNC machines
• Laser cutting machines
• Laser marking machines
• Packaging machines
• Printing machinery
• Textile machinery
• Pick-and-place systems
• Assembly machines
• Precision positioning equipment
• Material handling systems
• Conveyor systems
• Inspection machines
• Automated production machinery
• OEM machinery
• Industrial motion-control systems

Yaskawa SGD7S-120A00A002 for Laser Machines

Servo drives are widely used in laser machinery for controlling precise movement of machine axes, feeding systems and positioning mechanisms.

The SGD7S-120A00A002 1.5kW Servo Drive can be considered for laser machine applications requiring a 1.5 kW servo motor, provided the motor, encoder, power supply and machine controller are compatible.

Typical applications include:

• X/Y axis movement
• Z-axis positioning
• Material feeding
• Automatic positioning
• Precision indexing
• Conveyor movement
• Machine-axis control

For replacement applications, always verify the existing SERVOPACK model, servo motor model, encoder type and control interface before purchasing.

Varnished Hardware for Industrial Applications

The 002 hardware option indicates that this SERVOPACK has a varnished configuration. Yaskawa identifies this as a hardware option available across its SGD7S models.

When replacing an existing drive, matching the hardware option can be important because the complete model number may specify environmental or construction-related characteristics of the original equipment.

Therefore, if the existing drive is SGD7S-120A00A002, it is preferable to verify the complete model number rather than selecting a drive based only on the SGD7S-120A00A base model.

Why Choose Yaskawa Sigma-7?

3.1 kHz High-Speed Response

The Sigma-7 Analog platform provides a specified 3.1 kHz frequency response, supporting fast response and improved settling performance.

Advanced Servo Tuning

Tuning-less operation and improved automatic tuning features simplify servo commissioning and machine setup.

Vibration Suppression

Sigma-7 incorporates advanced functions for vibration, ripple and friction compensation to improve machine performance.

Precision Motion Control

The SGD7S platform is designed for accurate position, speed and torque control in demanding industrial automation applications.

Buy Yaskawa SGD7S-120A00A002 in Bangladesh

Looking for a Yaskawa SGD7S-120A00A002 Servo Drive in Bangladesh?

ZONCN Bangladesh supplies Yaskawa servo drives and industrial automation components for factories, OEM machine builders, automation engineers and industrial maintenance teams.

We can assist with:

• Yaskawa Servo Drive supply
• 1.5 kW Servo Drive supply
• Servo motor and drive matching
• Replacement servo drive selection
• Machine retrofit applications
• Servo encoder cable supply
• Technical consultation
• Industrial automation support
• Product compatibility checking

Need to Replace an Existing Yaskawa Servo Drive?

Send us your existing servo drive model, servo motor model or machine nameplate photo. Our technical team can help verify the suitable replacement model.

Contact ZONCN Bangladesh for price, availability and technical support.

FAQ

What is Yaskawa SGD7S-120A00A002?

Yaskawa SGD7S-120A00A002 is a Sigma-7 single-axis AC Servo Drive/SERVOPACK for 1.5 kW-class motors with Analog Voltage/Pulse Train control. The 002 suffix indicates the varnished hardware option.

What is the motor capacity?

The maximum applicable motor capacity is 1.5 kW / 1500 W.

What does 002 mean?

002 = Varnished hardware option according to Yaskawa’s official model designation.

What is the input voltage?

The model belongs to the 200 VAC class and the standard SGD7S-120A configuration uses a three-phase 200 VAC power supply.

What type of control interface does it use?

The SGD7S-120A00A family uses Analog Voltage/Pulse Train control.

What is the frequency response?

The SGD7S Analog series provides a specified 3.1 kHz frequency response.

Is SGD7S-120A00A002 suitable for laser machines?

Yes, it can be suitable for laser cutting, marking and other precision machinery requiring a 1.5 kW servo system, provided the motor, encoder and machine control system are compatible.

Can SGD7S-120A00A002 replace SGD7S-120A00A?

The base model is the same 1.5 kW Analog/Pulse SERVOPACK, but 002 specifically denotes the varnished hardware option. If you are replacing an existing unit, matching the complete model number is recommended.
